    Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630

    Ask Lasest Price
    Brand Name : HYCM-TOWER CRANES
    Model Number : ZLP630 suspended working platform
    Certification : CE, ISO, GOST, CU-TR
    Price : Negotiation
    Payment Terms : 30% advance payment and balance before shipment or by copy of B/L
    Supply Ability : 200 pcs of suspended working platform per month
    Delivery Time : about 7 days after receiving the advance payment
    • Product Details
    • Company Profile

    Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630

    Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630


    FAQ for Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630
    Q1: What is the Warranty for suspended platform?
    A1: For suspended platform, we can supply 0.5 year’s warranty. If any quality problems (not artificial reason) on our side occurred during this period, we will supply a free new one as replacement.
    Q2: What is the meaning of ZLP for suspended platform model? And please illustrate.
    A2: ZLP is classified according to China National Standard.
    “Z” is the acronym of decoration machinery in Chinese language (Zhuang Xiu Ji Xie);
    “L” is the second word acronym of platform in Chinese language (Diao Lan);
    “P” is the acronym of climbing type in Chinese language (Pa Sheng Shi).
    For example: ZLP630 means aerial suspended platform, and 630kg rated load (630 is the main specification rated load)
    Q3: What are the optional parts for your suspended platform?
    A3:1) Safety belt
    2) Concrete counter-weight. (If you don’t need the weights, we could supply the molds for you to make them by yourself.)
    Q4: What are the safety devices for your suspended platform?
    A4: The safety device for suspended platform includes safety wire rope, safety lock and travel limiter.
    Q5: What is process to make an order?
    A5: Any inquires will receive our immediate reply (within 24 hours), by contact and communication (online contact is better) to sigh a contract. Then starting to produce and making package within 10 days after receiving the advance payment. A shipment advice will offered after shipping so that you could get the goods in time. 24 hours after-sales service will be supplied for you.
    Q6: What is your trade items of suspended working platform?
    Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.
    Specifications for Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630
    Model No.ZLP630
    Rated load(kg)630
    Lifting speed(m/min)9~11
    Hoister modelLTD63
    Motor power(kw)2×1.5
    Brake torque(N.m)15.2
    Rated stretch of front beam(mm)1100-1700
    Suspending PlatformNo. of platform rackSingle rack
    No. of platform3
    L×W×H(mm)(1.5+2+2.5)×690×1180
    Suspending mechanism(kg)2×175 Kg
    Counterweight(kg) --optional25×40pcs
    Diameter of steel rope(mm)8.3
    Voltage(v) 3PHASES220V/380V/415V (customized)
    Ambient temperature-20℃~+40℃
    Ambient relative humidity≤ 90%(25℃)

    "6S" SERVICES FOR OUR TOWER CRANE
    Smart 1- Collaborate with others to solve your entire problem
    Smart 2- Our goal is to provide you with a personalized service and complete solution
    Specialized 1- Strict raw material control, only the best will pass the test
    Specialized 2-Strict quality control, making flawless finished products
    Speedy 1- Professional sales team, guarantee reply with-in 12 hours
    Speedy 2- Speedy dispatch with minimal delays
    Study 1—Study traditional Chinese values. Educating to be better person first, making better products after that
    Study 2-Educate ourselves with professional for better service
    Support 1-We have skilled expert providing all technical support
    Support 2-Our front line workers are united and skilled
    Sincere1- Think from our customers' perspective and fulfill their needs with our best effort.
    Sincere 2-A warm welcome for every customer, build genuine relationships from friends all over the Globle.

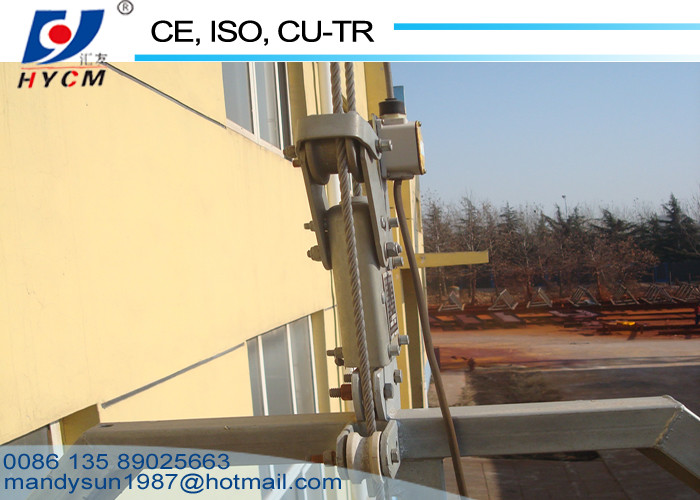

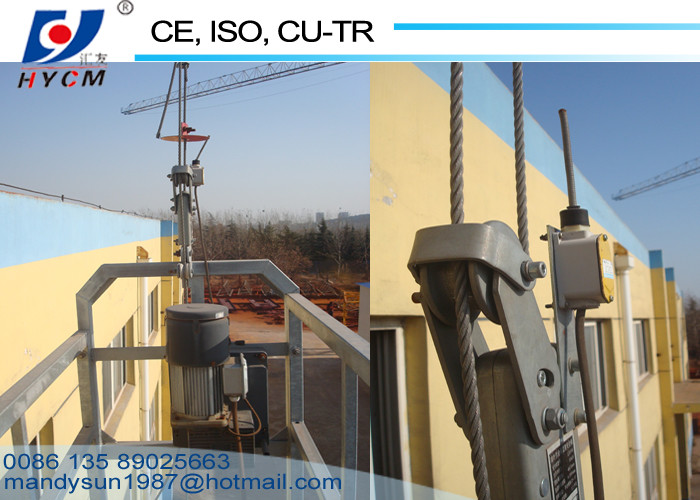

    Photos for Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630
    Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630Aluminum Alloy Electric Suspended Working Platform External Wall Cradle ZLP630
