| Brand Name : | HYCM-TOWER CRANES |
| Model Number : | SC100 Lifting Hoist for Building Construction |
| Certification : | CE, ISO |
| Price : | Negotiation |
| Payment Terms : | 30% advance payment and balance before shipment or by copy of B/L OR 100% LC at sight |
| Supply Ability : | 150 pcs of construction buliding hoist per month |
| Delivery Time : | about 35 days after receiving the advance payment |
One Cage 1000KG Material and Passenger Hoisting Equipment in Construction
Specifications for One Cage 1000KG Material and Passenger Hoisting Equipment in Construction
Type Specifications | SC100 | |
| Rated Load(Kg) | 1000 | |
| Rated Passengers | 10 | |
| Rated Lifting Speed(m/min) | 36 | |
| Max. Lifting height(m) | 150 | |
| Mast Section Size(L*W*H/m) | 0.65×0.65×1.508 | |
| Cage Size(L*W*H/m) | 3.2X1.3X2.3 | |
| Motor | Type | YZZ132M-4 |
| Motor Power(kw) | 11×2×2 | |
| Reducer | Type | TCW-125-16-IF |
| Center distance (mm) | 125 | |
| Transmission ratio | 1:16 | |

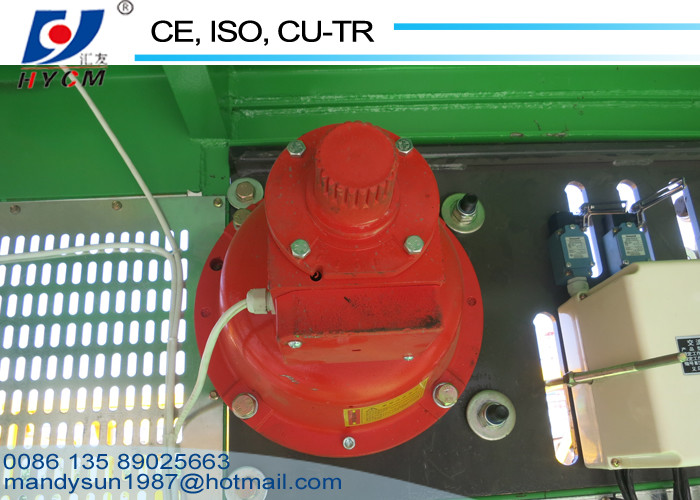

| Safety device | Type | SAJ30-1.2A |
| Form | Progressive | |
| Speed of action(m/min) | 51.6 | |
| Braking torque (N.m) | ≥3000 | |
| Rack | type | Modulus=8 Number of teeth =60 |
| Roller | type | External diameter=95 Internal diameter=62 Thickness=55 |
|
|
