    SC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators

    Ask Lasest Price
    Brand Name : HYCM-TOWER CRANES
    Model Number : SC100 temporary construction elevators
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : 30% advance payment and balance before shipment or by copy of B/L OR 100% LC at sight
    Supply Ability : 150 pcs of temporary construction elevators per month
    Delivery Time : about 35 days after receiving the advance payment
    • Product Details
    • Company Profile

    SC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators

    SC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators


    Our Skilled Team
    Our R&D team is made up of the most prestigious, experienced engineers and experts in this field.
    Our technicians team are all experienced senior mechanicians.
    We provide satisfactory service (pre-sale, while-sale, after-sale).
    Our professional advice and instruction are always available and acceptable.

    Specifications for SC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators

    Type

    Specifications

    SC100
    Rated Load(Kg)1000
    Rated Passengers10
    Rated Lifting Speed(m/min)36
    Max. Lifting height(m)150
    Mast Section Size(L*W*H/m)0.65×0.65×1.508
    Cage Size(L*W*H/m)3.2X1.3X2.3
    MotorTypeYZZ132M-4
    Motor Power(kw)11×2×2
    ReducerTypeTCW-125-16-IF
    Center distance (mm)125
    Transmission ratio1:16
    Safety deviceTypeSAJ30-1.2A
    FormProgressive
    Speed of action(m/min)51.6
    Braking torque (N.m)≥3000
    Racktype

    Modulus=8

    Number of teeth =60

    Rollertype

    External diameter=95

    Internal diameter=62

    Thickness=55

    All kinds of Spare Parts for SC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators
    Driving device With 2-motors / 3-motors
    Motor 11kw, 14.5kw,18kw
    Motor spare parts Braking system; brake sheet, motor adjustor, electromagnet, motor fan
    Safety device 30KN, 40KN, 50KN, 60KN
    Gearbox 20:1,16:1,14:1,12:1;10:1
    Coupling with rubber
    Master rollers For 76 tube and 89 tube
    Gear rack M8 40x60x1508mm
    Gear pinion M8, 15teet
    "6S" SERVICES For SC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators
    Smart 1- Collaborate with others to solve your entire problem
    Smart 2- Our goal is to provide you with a personalized service and complete solution
    Specialized 1- Strict raw material control, only the best will pass the test
    Specialized 2-Strict quality control, making flawless finished products
    Speedy 1- Professional sales team, guarantee reply with-in 12 hours
    Speedy 2- Speedy dispatch with minimal delays
    Study 1—Study traditional Chinese values. Educating to be better person first, making better products after that
    Study 2-Educate ourselves with professional for better service
    Support 1-We have skilled expert providing all technical support
    Support 2-Our front line workers are united and skilled
    Sincere1- Think from our customers' perspective and fulfill their needs with our best effort.
    Sincere 2-A warm welcome for every customer, build genuine relationships from friends all over the Globle.
    Services for HYCM Tower Cranes
    1. Installation, debugging, operators trainning;
    2. Maintanence:
    A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
    B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
    C. Call us at any time if you have problems about our tower crane;
    D. If needed, we will send engineers to your site to solve your problems.
    3. Providing some documents for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
    4. Spare parts supply.
    5. More products for you to choose

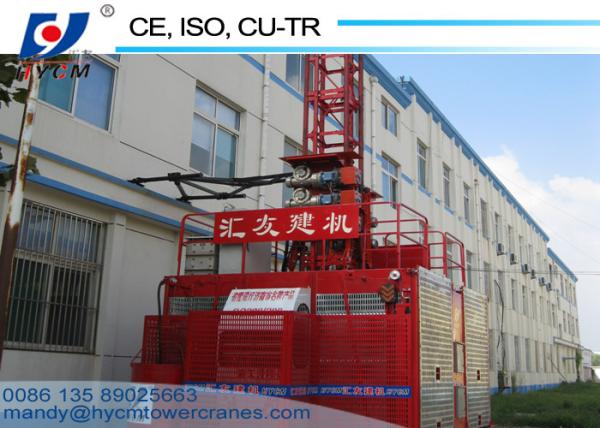

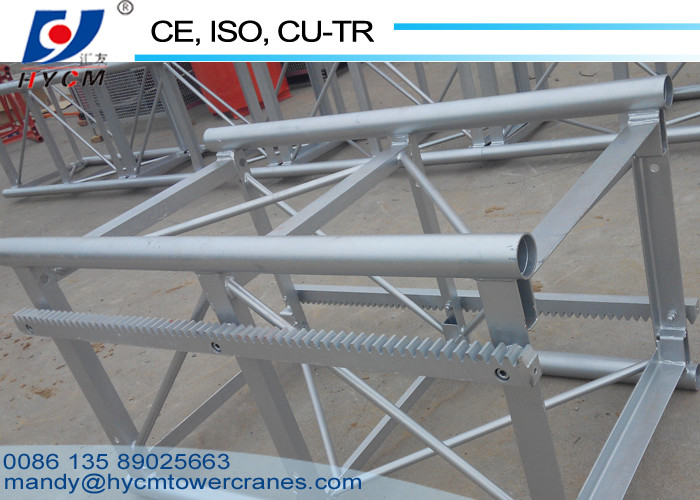

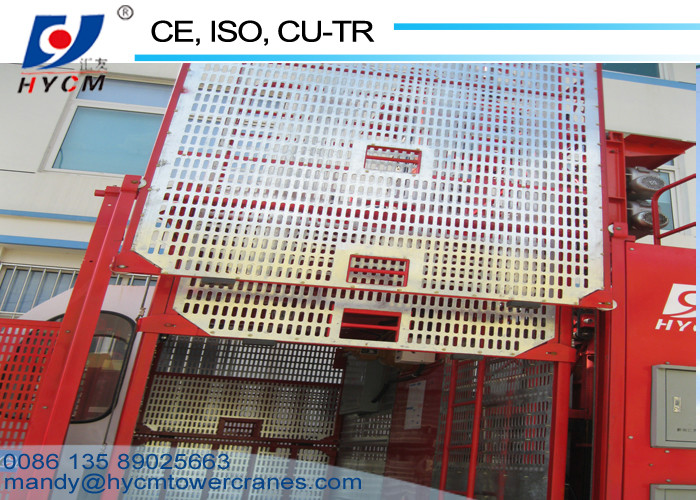

    Photos for SC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators
    SC100 One Cage 1000KG Material and Passenger Temporary Construction ElevatorsSC100 One Cage 1000KG Material and Passenger Temporary Construction ElevatorsSC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators
    SC100 One Cage 1000KG Material and Passenger Temporary Construction ElevatorsSC100 One Cage 1000KG Material and Passenger Temporary Construction ElevatorsSC100 One Cage 1000KG Material and Passenger Temporary Construction ElevatorsSC100 One Cage 1000KG Material and Passenger Temporary Construction Elevators
